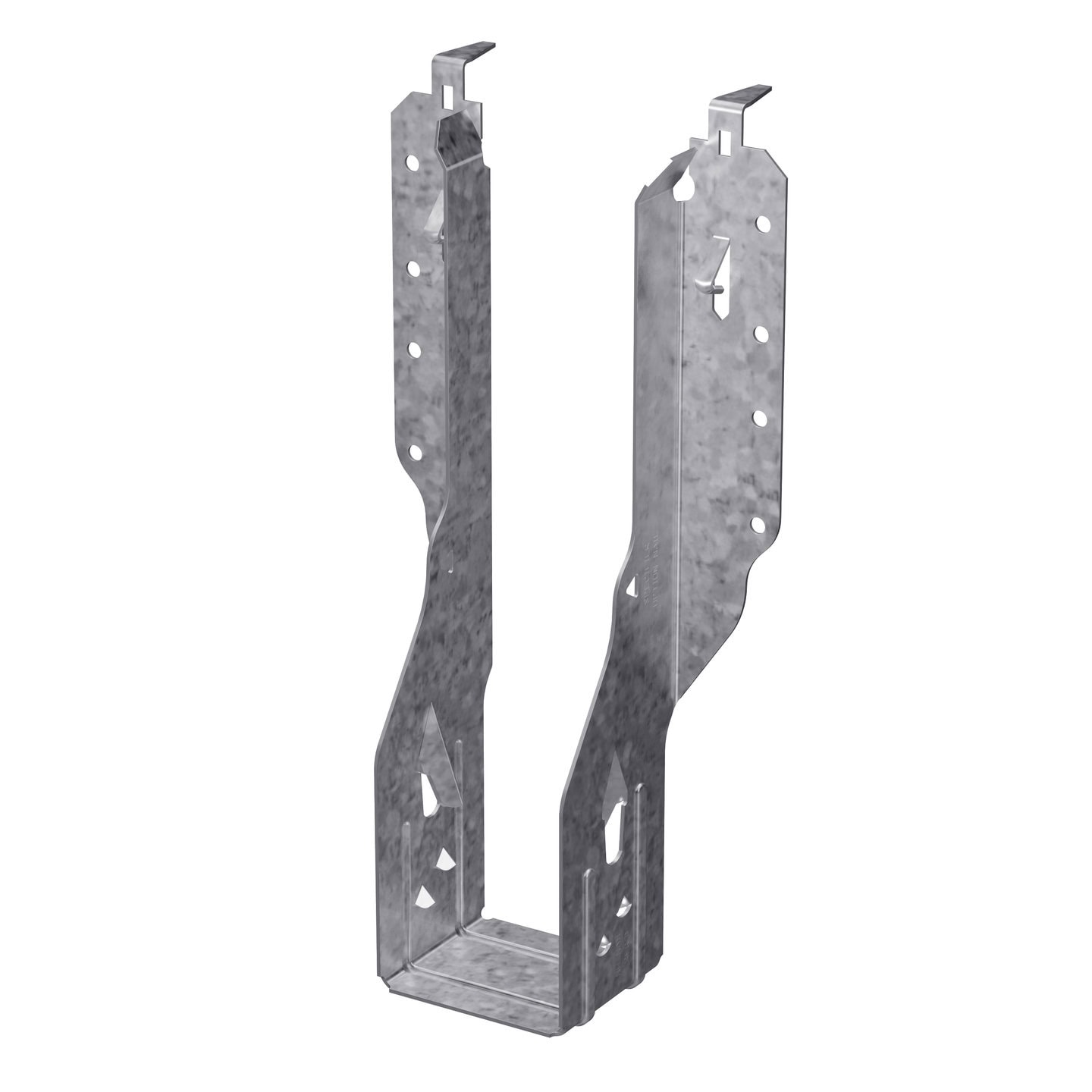

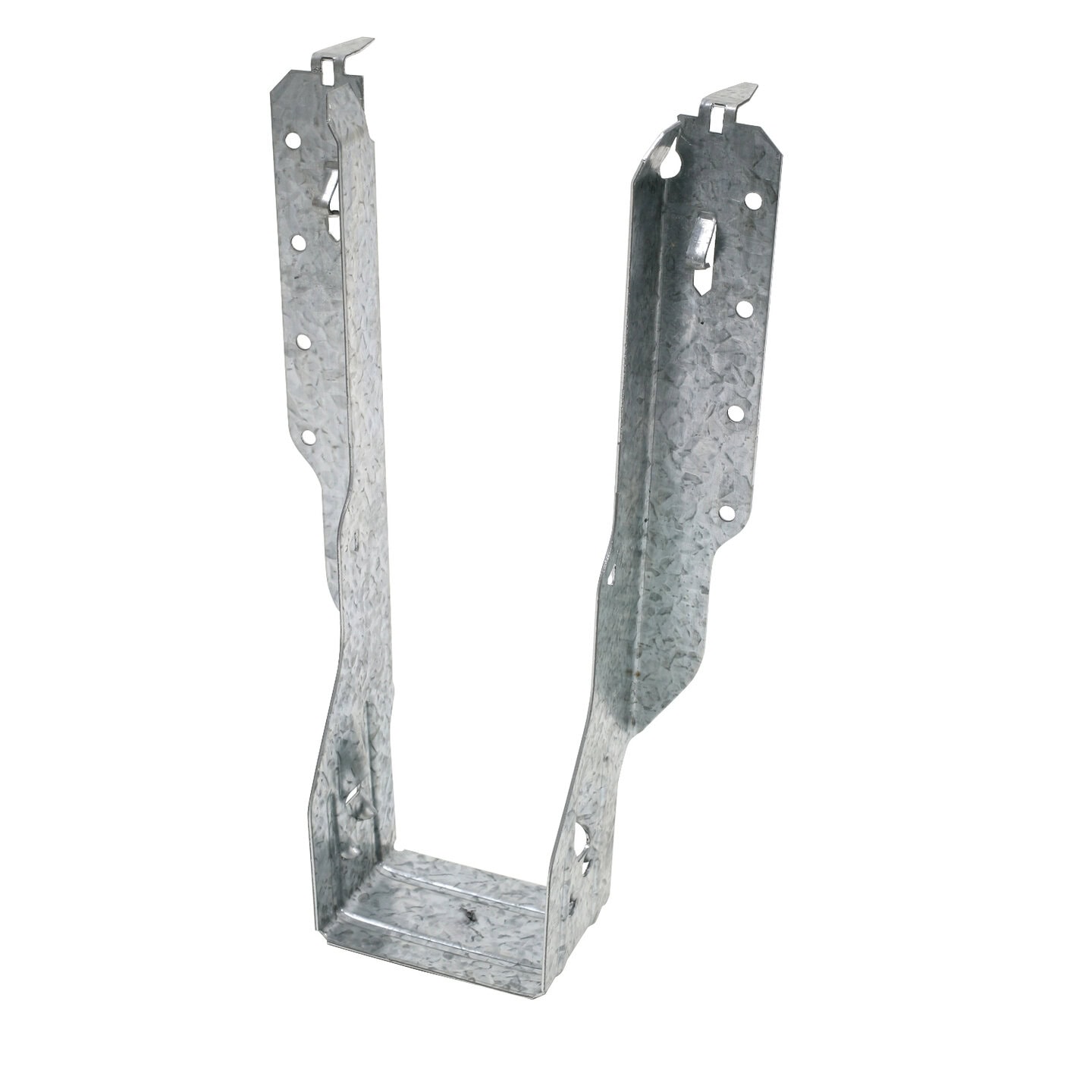

SIMPSON IUS2.56/11.88 2-1/2" X 11-7/8" FACE MOUNT I-JOIST HANGER

Delivery Options
Pick Up at Branch

Shopping the Augusta branch

Low stock at Augusta (approximately 1 available)

The IUS is a hybrid hanger that incorporates the advantages of the face-mount and top-mount hanger. The Strong-Grip™ seat feature allows the I-joist to snap securely into place without the need for joist nails, resulting in a low installed cost. The IUS hanger also features easy-to-reach face nails and self-jigging locator tabs for easier installation.

Additional Details

  • Product Code: IUS25611
  • Manufacturer Code: IUS2.56/11.88
  • UPC: 707392863106
  • Weight: 1
  • Seat width: 2-5/8 in.
  • Height: 11-7/8 in.
  • Actual joist size: 2-1/2 in. to 2-9/16 in. x 11-7/8 in.
  • Assembled Width: 5.0295 in.
  • Assembled Height: 11.98175 in.
  • Assembled Depth: 2.99 in.
  • Install With: Install with 10d common nails
  • Packaging Quantity: 1
  • Packaging Type: Individual Item
  • Coating: Zinc Galvanized, G90
  • Color: None
  • Gauge: 18
  • Member Size: 2-1/2 in. to 2-9/16 in. x 11-7/8 in.
  • Locator tabs may be bent back to adjust for hanger placement or to leave a completely smooth top surface
  • Models will normally accommodate a skew of up to 5°
  • IUS-series hangers are tested, load rated and code compliant
  • Made from 18-gauge steel
  • Galvanized (G90) for extra corrosion resistance
